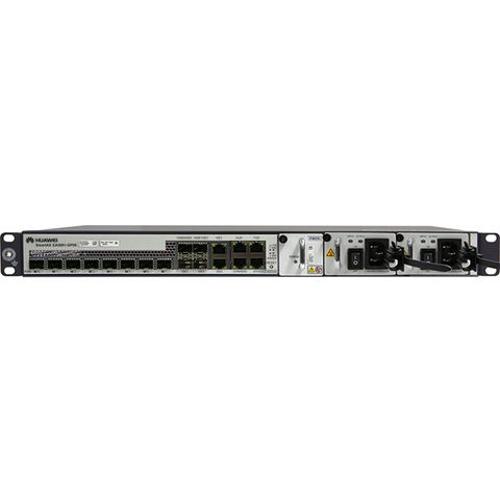

Huawei compact and low-density box-shaped GPON OLT EA5801E-GP08-H2
Short Description:
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6 |
| Maximum fully-loaded weight | 5 kg |
| Ambient temperature | –40°C to +65°C The device can start up at a lowest temperature of –25°C. NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| System switching capacity | 110 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 256 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| IP addresses available for built-in DHCP servers | 4096 |
| ARP table | 16384 |
| APs | 128 |
| Portal authentication users | 960 |
| Maximum number of STAs | 1024 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| System reliability specifications | System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 61 years NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (61 years) of the EA5801E is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. |
| Power consumption | DC power supply: Static power consumption: 46W Typical power consumption: 64W Maximum power consumption: 111W AC power supply: Static power consumption: 47W Typical power consumption: 65W Maximum power consumption: 112W NOTE: The power consumption of a product is tested in the following conditions: Static power consumption: 25°C, no optical module in optical ports, and no service. Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. |
