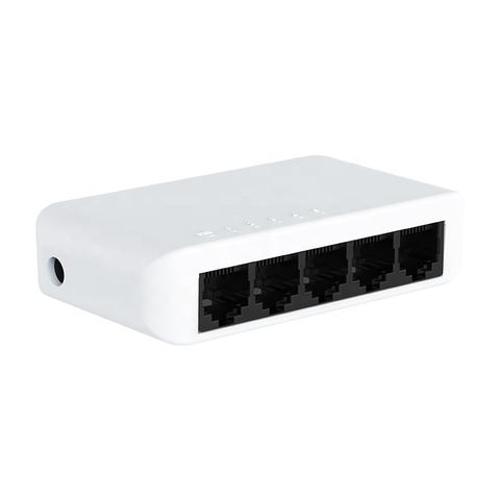

5 Port Gigabit Ethernet Switch Smart 1000Base-T Network Fast Switcher 1000M Hub Internet Splitter for Camera Surveillance
Short Description:
| Power | DC 5V |
| Ethernet | 5*Gigabit RJ45 Ports |
| Main Chip | EN8850DN |
| Material | Plastic |
| Switching Capacity | 10Gbps |
| Throughput | 7.44Mpps |
| Package cache | 3Mbit |
| MAC Address | 2K |
| Jumbo Frame | 15Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3x (Flow control) |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or aboveUTP(≤100m) |
| Safety certificate | CE,FCC,RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-20~70°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~95%,non-condensing |
| LED Indicators | PWR(Power indicator),Link(Network Link) |
| PWR | On: power onOff: no power |
| Link | On: 10/100/1000M link connection is normalBlinking: Data transmission is normalOff: link failure |
| Structure Size | Product Size:92*51*21.5mmPacking Size:93*82*51mmProduct Weight:0.062KgPacking Weight:0.132Kg |
| Packing Info | Outer box size: 435*280*395mmPacking quantity: 100PCSPacking weight: 14.2KG |
| Operating Voltage | Power interface: DC2.1Switch input voltage: DC 5V1A |
| Total power | <5W |
| Packing list | 1. Switch:1 PCS2. User manual :1PCS3. Warranty :1 PCS4. PowerAdapter :1 PCS |
