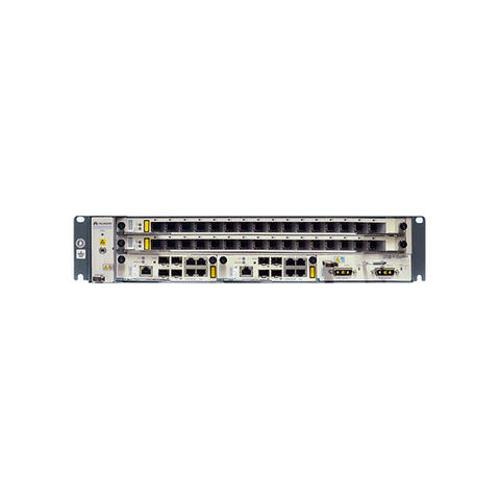

Huawei MA5608T ftth olt with Gpon
Short Description:
| Board Type | |
| Board | |
| Full Name | Function |
| Control board | |
| H801MCUD | |
| Mini Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing Synchronization with the Ethernet clock GE or 10GE channel to the service board Environmental monitoring parameters Seven alarm digital inputs (DIs) and one alarm digital output (DO) Temperature reading and high temperature alarming Monitoring and management of the fan tray Four SFP GE ports for upstream transmission or cascading |
| H801MCUD1 | |
| Mini Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing Synchronous Ethernet GE or 10GE channel to the service board Environmental monitoring parameters Seven inputs of alarm digital parameters and one output of alarm digital parameters Temperature reading and high-temperature alarm Fan tray monitoring and management Two SFP+ 10GE ports and two SFP GE ports for upstream transmission or cascading One input of BITS clock signals and one output of BITS clock signals One input of 1PPS+TOD time signals and one output of 1PPS+TOD time signals Stratum-3 clock |
| Power interface board | |
| H801MPWC | |
| Double DC power board | Two -48 V DC inputs Filtering and current-limiting for the power input port Detection of input undervoltage, power supply availability, and power supply faults Reporting of the protection alarm together with board ready status Indication of power status |
| H801MPWD | |
| AC power board | Input AC voltage: -100 V to -240 V Input AC frequency: 50 Hz to 60 Hz Single-phase three-wire AC power input Battery port, a 3V3 terminal socket, supporting DC input power Lead-acid battery input, reverse polarity protection, and fuse protection Output DC power voltage: -48 V (adjustable from -42 V to -57.6 V) Rated output power: 400 W Alarm monitoring Enabling and disabling of the rectifier module; equalized and float charging for the rectifier module Battery low voltage disconnection; charge and discharge management of storage batteries |
| Service board | |
| GPON interface board | |
| H805GPBD | |
| 8-port GPON OLT interface board | Eight GPON SFP ports (one-fiber bi-directional port) A maximum of 128 ONTs for each GPON port Class B+ and class C+ optical modules Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module ONU-based shaping Temperature query and board power-off in case of a high temperature |
| H802GPFD | |
| 16-port GPON OLT Interface Board | Sixteen GPON SFP ports A maximum of 1:128 split ratio Class B+ and Class C+ optical modules Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module ONU-based queque shaping Temperature query and high temperature alarm Automatic power shutdown in case of a high temperature |
| SPU board | |
| H801SPUB | |
| service processing unit board | 10 Gbit/s (unidirectional 10 Gbit/s, bidirectional 5 Gbit/s) MPLS switching capability One 10GE attachment unit interface (XAUI) to each control board Active/standby switchover of the control boards |
| Voice board | |
| H802EDTB | |
| 16-port T1 service board | 16 channels of E1/T1 access services Independent upstream and downstream transmission of each channel of E1/T1 clock signals Configuration of the Tx clock source of an E1/T1 port Specifying the line clock of an E1/T1 port as the system clock source Timeslot binding TDM PWE3 service CPE mode |
| P2P interface board | |
| H802OPGD | |
| 48-port GE/FE optical interface board | 48 (CSFP) or 24 (SFP) channels of GE/FE P2P optical access services Cascading and aggregation of DSLAMs or MxUs Synchronous Ethernet clock issuing Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules |
| Ethernet service access board | |
| H801ETHB | |
| Ethernet service access board | Ethernet upstream transmission Ethernet cascading Eight SFP GE optical modules Intra-board aggregation |
