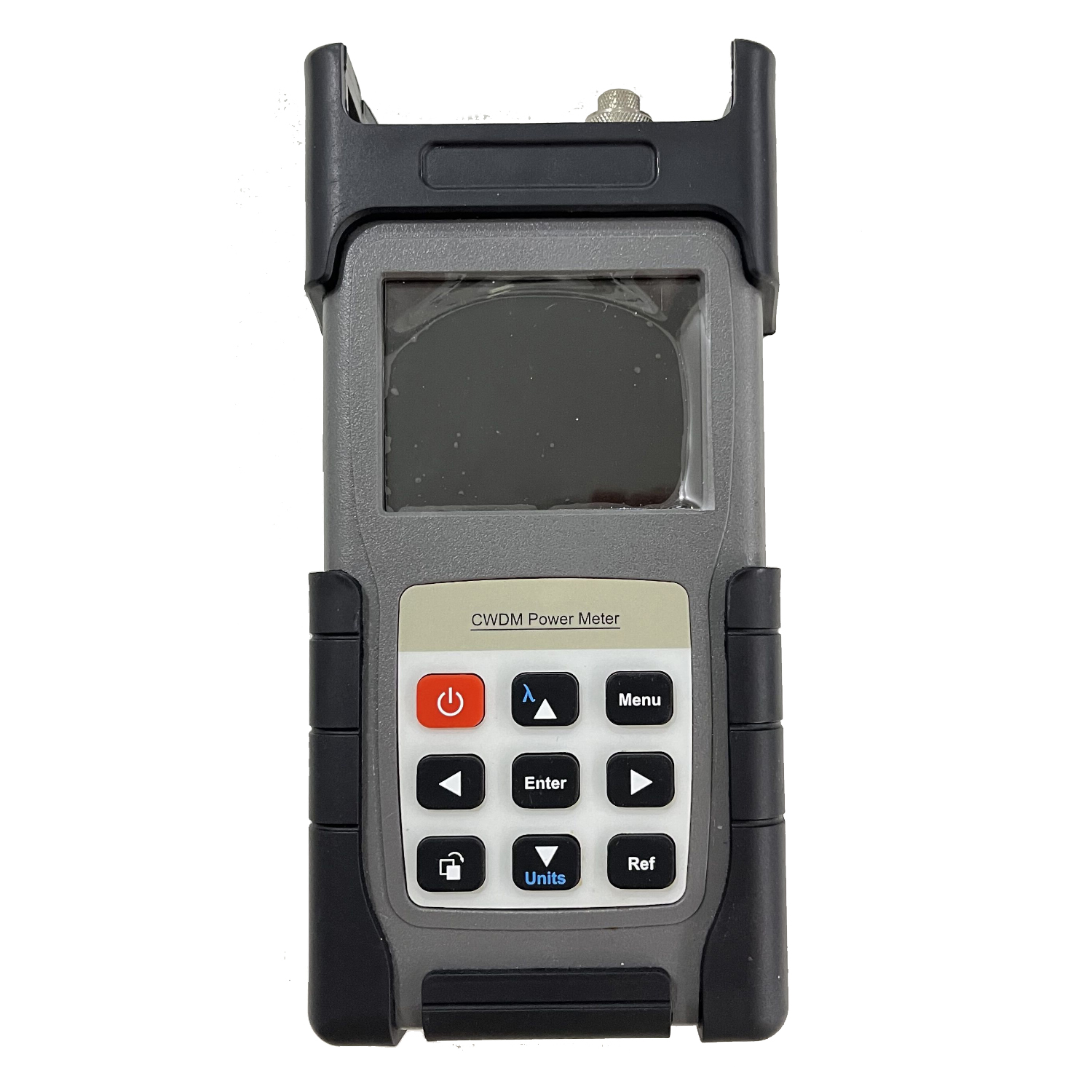

1270 ~ 1610 nm 18 Channels Handheld CWDM Optical Power Meter fiber optic power meter
Short Description:
| Wavelength | 1270~1610 nm |
| Number of Channels | 18 |
| Wavelength Resolution | 20nm |
| Measuring Wavelength(nm) | 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610 |
| Dynamic Range | -40 ~ +10dBm |
| Uncertainty | ±0.5 dB |
| Resolution | 0.01dB |
| Optical Interface | FC SC ST (UPC) |
| Communication Port | USB |
| Date Storage Capacity | 1000 |
| Operation Temperature | -10 to +60 ℃ |
| Power Supply | Rechargeable Battery / AC power adapter |
| Time of Operating | 10 hours |
| Time of Auto-off | 10 mins |
| Dimension | 220mmx110mmx70mm |
| Weight | 850g |
