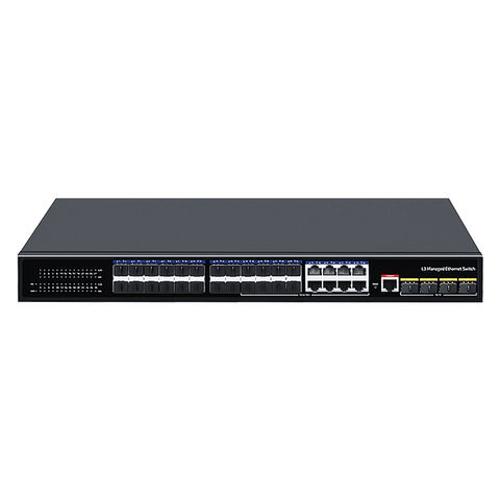

28 Port L3 Managed Ethernet Switch 10G Uplink SFP 24 Gigabit SFP Port Network Switcher with DHCP/QoS/ACL control/SNMP
Short Description:
| Power | AC 100-240V/50-60Hz |
| Ethernet | 24* Gigabit SFP Ports8* Gigabit Ethernet Ports(Combo)4* 10G SFP+ Ports1* Console Port |
| Bandwidth | 128Gbps |
| Packet ForwardingRate | 95.23Mpps |
| DDR SDRAM | 128MByte |
| Flash Memory | 16MByte |
| Package Cache | 12M |
| MAC Address MAC Address | 16K |
| Jumbo Frame | 10Kbytes |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 4K |
| Transfer Mode | Storage & Forwarding |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Rapid Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3z (Gigabit Ethernet Optical Fiber Standard)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow Control)IEEE 802.3az (Energy Efficient Ethernet)IEEE 802.3ad(Link Aggregation)IEEE 802.1AB LLDP/LLDP-MED(Link Layer Discovery Protocol)IEEE 802.1D Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)IEEE 802.1Q (VisualLAN)IEEE 802.1p (VLANLabel)IEEE 802.1X (Client/Server Access Control and Authentication Protocol) |
| Industry Standard | EMS: EN61000-4-2 (ESD),EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T: Cat 3, 4, 5 or above UTP(≤100m)100BASE-TX: Cat 5 or above UTP(≤100m)1000BASE-TX: Cat 5 or above UTP(≤100m) |
| Optical Medium | Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2KmSingle-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km |
| Safety Certificate | CE, FCC, RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-40~70°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~95%,non-condensing |
| Indicator | PWR, SYS, SW, PoE/ACT, Link/ACT |
| PWR (Power Light) | On: Powered on,Off: Powered off |
| SYS (System Light) | On: System Normal,Flashing: System Starting or Failed |
| Link/ACT (Link & Data) | On: Link Connecting,Flashing:Data Transmitting,Off: Link disconnect |
| Structure Size | Product Dimensions: 440*205*44mmPackage Dimensions: 500*290*85mmProduct N.W: 3.06KGProduct G.W: 3.63KG |
| Packing Info | Carton Dimensions: 520*445*310mmPacking Quantity: 5 PCSPacking Weight: 19.15KG |
| Power Voltage | Voltage: AC 100-240V/50-60HzPower supply: 12V8A |
| Power Consumption(Max) | Maximum 38W |
| Package List | Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS, Serialcable: 1PCS, Rack ear: 1 Pairs |
| IPv4 | IPv4 VLAN InterfaceIPv4 Static RoutesARP |
| IPv6 | IPv6 VLAN InterfaceIPv6 Static RoutesIPv6 ND |
| RIP | V1/V2 |
| OSPF | Router-IDAuthenticationv2 |
| L2 Function | |
| Port | Port SwitchPort DescriptionPort SpeedPort DuplexPort Flow ControlJumbo, Up to 10KSupport 10G/2.5G (2023.3.2)Fiber Module(DDM) |
| Link Aggregation | Supports load balance policy;Base on MAC and IP-MACStatic and Dynamic GroupSupports LACPUp to 8 groups |
| Storm Control | BoardcastUnknown MulticastUnknown Unicast |
| Port Mirroring | One to one monitorMany to one monitorIngress/Egress/BothUp to 4 session groups |
| Port Security | MAC Address ConstraintsPort Security MAC AddressProtect/Restrict/Shutdown |
| Port IsolationPort Rate-limitLoopback Detection | |
| VLAN | Access/Trunk/HybridVLAN Tunnel (Q-in-Q Tunnel)Congurable VID from 1 - 4094;Max. 4K static VLAN groupsVoice VLANMAC VLANSurveillance VLANProtocol VLAN GVRP |
| MAC Address | Dynamic AddressStatic AddressFiltering Address |
| Spnning Tree Protocol | STP/RSTP/MSTPBPDU FilterBPDU GuardEdge Port |
| LLDP | LLDPLLDP MED |
| Multicast | IGMP SnnopingIGMP V1/V2/V3Router PortStatic IGMP group addressIGMP groups filteringQuerierMLD SnoopingMVR |
| QoS | Traffic classification based, Strict priority and WRRPort Priority802.1P PriorityIP TOS PriorityIP DSCP PrioritySupports up to 8 queues per portPriority Remarking |
| DHCP | DHCP ServerIP PoolStatic BindingDHCP RelayOption 43 |
| Access Protocol | HTTPHTTPSTelnetSSHv2Manager ACLSession TimeoutPassword Retry CountSilent Time |
| AAA | RADIUSTACACS+802.1XBase on port/MAC/local/WEB |
| DHCP Snooping | Global/VLANOption 82Circuit ID |
| IP Source GuardDynamic ARPInspectionDoS | |
| ACL | MAC ACLIPv4 ACLIPv6 ACL |
| Syslog | Logging MessageRemote Server |
| PingTracerouteCopper TestUDLD | |
| Manager Access | ConsoleHTTP/HTTPSTelnetSSHSNMP |
| Manager IP | Static AddressDHCP ClientSupports IPv4 and IPv6 addressManager VLANDNS |
| Time Synchronization | SNTPManual Time |
| SNMP | V1/V2C/V3CommunityV3 UserGroupTrap Host |
| SNMP MIB | RFC 1213 MIB-IIRFC 1493 Bridge MIBRFC 1643 Ethernet MIBRFC 2819 RMON MIB (Groups 1, 2, 3 and 9)RFC 2863 Interface MIBLLDPPrivate MIBRFC 1213 MIB-IIRFC 1493 Bridge MIBRFC 1643 Ethernet MIBRFC 2819 RMON MIB (Groups 1, 2, 3 and 9)RFC 2863 Interface MIBLLDPPrivate MIB |
| RMON | StatisticsHistoryEventAlarm |
| User | |
| Firmware | Firmware Upgarde |
| Configuration | Upload and download |
| Save | |
| Restart | |
| Factory Defaults | |
| IEEE 802.3x flow control and back pressureIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP v1RFC 2236 IGMP v2RFC 3376 IGMP v3RFC 2710 MLD v1FRC 3810 MLD v2RFC 2328 OSPF v2 |
