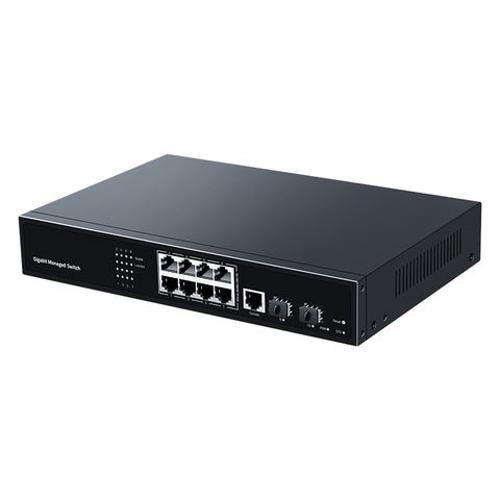

10 Port Managed Gigabit Ethernet Switch 1000Mbps L2 Management Smart Network Switcher for Camera Surveillance Router
Short Description:
| Power | AC 100-240 V |
| Ethernet | 8*10/100/1000Mbps Ethernet Port2*1000Mbps SFP Port1*Console Port |
| Bandwidth | 20Gbps (non-blocking) |
| Packet Forwarding rate | 14.88Mpps |
| Packet Buffer | 4Mbit |
| Memory Capacity | 128Mbyte |
| Flash Capacity | 16Mbyte |
| MAC Address | 8K |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 256 |
| Jumbo Frame | 10Kbytes |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3: 10Base-TIEEE802.3u :100Base-TXIEEE802.3ab: 1000Base-TXIEEE802.3z :1000Base-FXIEEE 802.3x:Flow controlIEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)IEEE 802.1p : LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filteringfunction)IEEE 802.1q:VLAN Bridge OperationIEEE 802.1x:Client/Server Access Control and Authentication ProtocolIEEE 802.3ad:Standard method for performing link aggregationIEEE 802.1d:STPIEEE 802.1s:MSTPIEEE 802.1w:RSTP |
| Industry Standard | EMS: EN61000-4-2 (ESD),EN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or above UTP(≤100m) |
| optical characteristics | multi mode:850/1310nm (0-2KM)Single mode:1310/1550/1490nm(0-120KM) |
| Security Certificate | CE,FCC,RoHS |
| Working Environment | Working Temperature:-10~50°CStorage Temperature:-40~70°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~95%,non-condensing |
| LED Indicators | PWR,SYS,Link,ACT |
| Structure Size | Product Size:268*181*44mmPackage Size:312*262*84mmProduct Net-Weight:1.01KGProduct Gross-Weight:1.54KG |
| Packing Info | MEAS:540*435*332mmPacking Qty:10PCSPacking weight:16.4KG |
| Power Voltage | Power Input Voltage: AC 100-240 VPower Output: 12V2A |
| power | Maximum 24W |
| Package List | Ethernet switch: 1 Set,Instruction manual: 1 PCS,Certificate: 1 PCS,Power cord:1PCSSerial cable: 1PCS,Power:1PCS |
