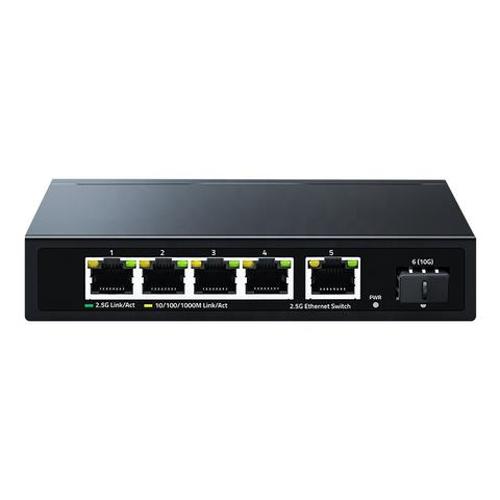

2.5GbE Ethernet Switch,5 x 2.5G Rj45 Base-t Port with 10G SFP+ Slot,45G Bandwidth,Plug and Play Unmanaged 2.5g Network Switch
Short Description:
| Power | DC 2.1 |
| Ethernet | 5*2.5G RJ45 Ports1*10G SFP+ Port |
| Bandwidth | 45Gbps |
| Pack forward rate | 33.48Mpps |
| MAC address | 4K |
| Jumbo Frame | 12Kbytes |
| Transfer mode | Storage & forward |
| MTBF | 100000 Hours |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz (5G Ethernet)IEEE 802.3z (Gigabit Ethernet)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or above UTP/STP(≤100m)1000Base-TX: Cat5 or above UTP/STP(≤100m) |
| Optical Medium | multi mode: 50/125, 62.5/125, 100/140umSingle mode: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certificate | CE, FCC, RoHS |
| Working environment | Working Temperature: -10~50°CStorage Temperature: -40~70°CWorking Humidity: 10%~90%, non-condensingStorage Temperature: 5%~90%, non-condensing |
| Power voltage | Adapter input voltage: AC 100-240 Vswitch input voltage: DC 12V1A |
| PWR (Power) | On: Powered onOff: Powered off |
| 1-5 Port green light | On: 2.5G Link connect normalOff: Link offFlashing: data transmitting |
| 1-5 Port yellow light | On: 10/100/1000M Link connect normalOff: Link offFlashing: data transmitting |
| Structure size | Product Size: 140*93*28mmPackage Size: 203*160*55mmProduct Net-Weight: 0.33KGProduct Gross-Weight: 0.46KG |
| Packaging list | 1. Switch 1pcs,2. User manual 1pcs,3. Certificate 1pcs, 4. Power adapter 1pcs |
