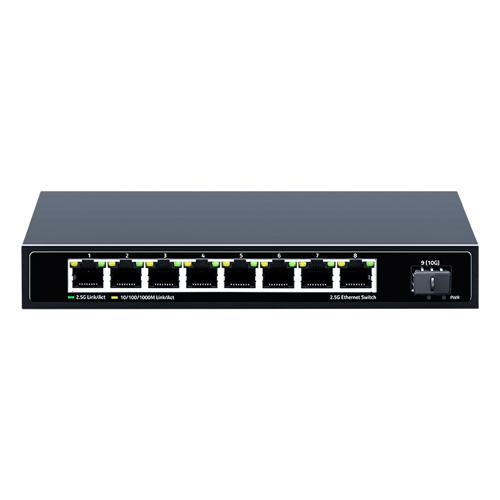

2.5GbE Switch,8 x 2.5G Rj45 Base-t Port with 10G SFP+ Slot,60G Bandwidth,Plug and Play Unmanaged 2.5g Network Switch

Short Description:


Product Detail

Power DC 2.1
Ethernet 8*2.5G RJ45 ports1*10G SFP ports
 bandwidth 60Gbps
Packet forwarding rate 44.64Mpps
MAC Address 4K
Jumbo frame  12Kbytes
Forwarding mode Store and forward
MTBF 100000 Hours
Network protocol IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz(5G Ethernet)IEEE 802.3z(Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control)
Industry standard EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-5(Surge)
 Network medium  10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or higher UTP/STP(≤100m)1000Base-TX: Cat5 or higher UTP/STP(≤100m))
 Optical fiber medium  Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Safety certification  CE,FCC,RoHS
 Working environment  Operating temperature: -10~50°CStorage temperature: -40~70°COperating humidity: 10%~90%, no condensationStorage humidity: 5%~90%, no condensation
PWR(Power indicator)  Steady on: The power supply is normalOff: No power is on
1-8 Network port greenindicator Steady on: The 2.5G link is properly connectedOff: The link is unavailableShiny: Data transfer
1-8 Network port yellowindicator Steady on: The 10/100/1000M link is properly connectedOff: The link is unavailableShiny: Data transfer
Structural dimension Product size: 190*100*28mmPackage size: 245*190*60mmProduct weight: 0.49KGPacking weight: 0.71KG
 Operating voltage  Adapter input voltage: AC 100-240 V  Switch input voltage: DC 12V2A
Packing list 1. Switch 1pcs,2. Specification 1pcs,3. Certificate of qualification 1pcs,4. Power adapter 1pcs
