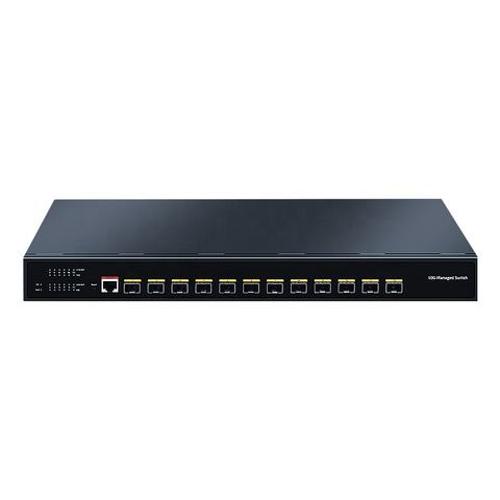

10G Ethernet Switch Managed 10000Mbps 12 Port Optical SFP Network Switch with QoS/VLAN/IGMP/DHCP 1U Rackmount
Short Description:
| Power | AC100-240V 50/60HzDC 12V |
| Ethernet | 12* SFP+ Ports1* RJ45 Console Port |
| Bandwidth | 240Gbps |
| Pack forward rate | 178.56Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Package cache | 16MB |
| MAC address | 32K |
| Jumbo Frame | 12K |
| VLANs | 4096 |
| Transfer mode | Storage & forward |
| MTBF | 100000 Hours |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3z (Gigabit Ethernet optical fiber)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control)IEEE 802.3az (Energy Efficient Ethernet)IEEE 802.3ad (link aggregation)IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)IEEE 802.1D Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)IEEE 802.1Q (Virtual Local Area Network)IEEE 802.1p (VLAN Tags)IEEE 802.1X (User Authentication) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140umSingle-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certificate | CE, FCC, RoHS |
| Working environment | Working Temperature: -10~50°CStorage Temperature: -40~70°CWorking Humidity: 10%~90%, non-condensingStorage Temperature: 5%~90%, non-condensing |
| Power voltage | Voltage: AC100-240V, 50/60HzPower supply: 12V8A |
| PWR (Power) | On: Powered onOff: Powered off |
| Indicator | PWR (Power Indicator),SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
| PWR(Power indicator) | On: Powered onOff: Powered Off |
| SYS(System light) | On: System normal,Flashing: system startup |
| 10G(Link Light) | On: 10G Link |
| ACT(Data Light) | On: Connecting; Flashing: Data Transmit; Off: Disconnect |
| Structure Size | Product Dimensions: 440*205*44mmPackage Dimensions: 500*290*85mmProduct N.W: 2.50 KGProduct G.W: 3.12 KG |
| Package List | Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PCSerial cable: 1 PC, Rack ear: 1 Pair |
