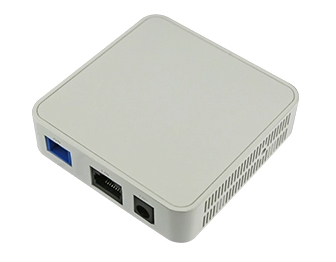

OEM 1 GE EPON ONU
provide one GE auto-adapting Ethernet ports. The ORTH60-111G(C66) features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the ORTH60-111G(C66) provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Support port-based rate limitation and bandwidth control
In compliant with ITU-T G. 984 Standard
Wi-Fi series meet 802.11 n/b/g technical standards
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software
Support port mode of VLAN configuration
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
EMS network management based on SNMP, convenient for maintenance.
Specification
|
Item |
Parameters |
Specification |
|

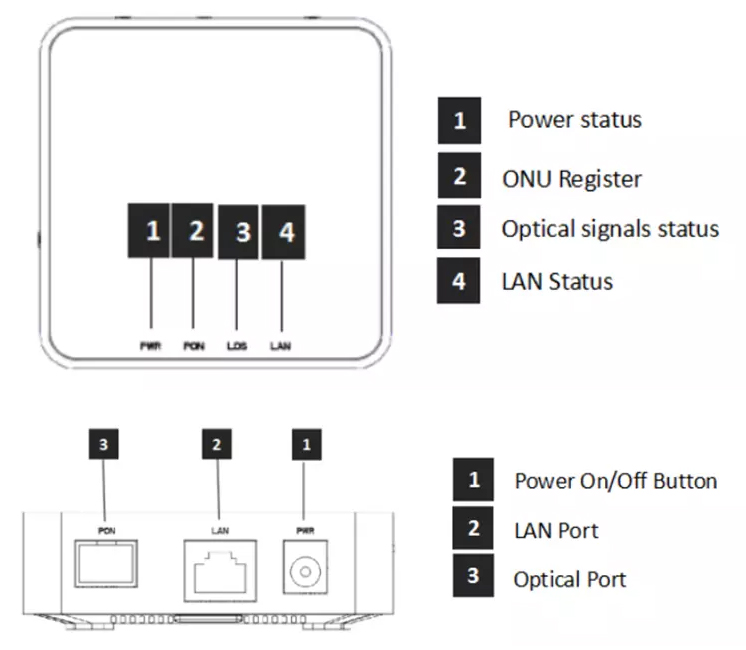

Interface |
PON Port |
1 EPON optical interface |
|
Ethernet Port (LAN) |
1*GE Auto-negotiation RJ45 ports Full Duplex / Half-Duplex Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
Power Supply Port |
12V DC supply power |
|
|
Management |
NetworkManagement |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 0.5A DC power supply adapter Power consumption: <3W |
|
|
Dimensions |
78mm(L) x78mm(W) x25mm (H) 0.1kg |
|
|
Environment |
Operating Temperature:0~50℃ StorageTemperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) StorageHumidity:10%~90%(Non-condensing) |

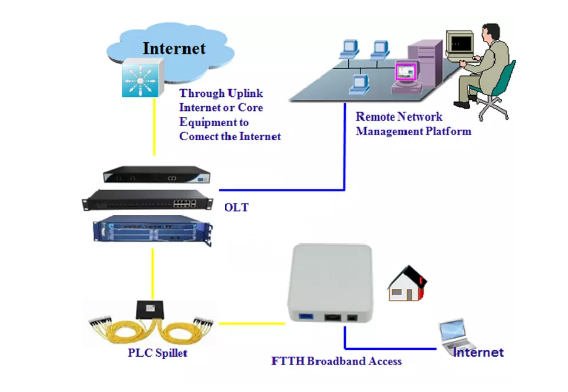

Solutions
.
Model
OEM 1 GE EPON ONU
