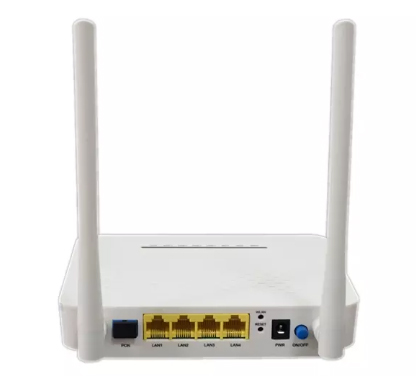

OEM 4 Lan WIFI GPON ONU
GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data and video service based on the GPON network.
.
It provide one GE and three FE auto-adapting Ethernet ports and 802.11 n/b/g Wi-Fi access. The features high-performance forwarding capabilities to ensure excellent Internet and HD video services. Therefore, It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Full compatible with ITU-T G.984
Support one GE and three FE auto-adapting Ethernet ports
Support one 802.11 n/b/g Wi-Fi access
Support OMCI and TR069 for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate and working mode
Support loopback at UNI
Support packet filtering and illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support PPPOE+ for accurate subscribers identification
Support IGMP Snooping
Support AES-128.
.
Specification
|
Item |
Parameters |
Specification |
|
|
Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 |
|
|
Ethernet Port (LAN) |
1*10/100/1000M and 3*10/100M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
||
|
Power Supply Port |
12V DC input |
||
|
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
||
|
Data Transmission |
PON Throughput: Downstream 2.488Gbit/s s; Upstream
1.244Gbit/s |
||
|
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection |
||
|
Management |
Network Management |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management |
|
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
||
|
Environmental |
Shell |
Plastic casing |
|
|
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <5.5W |
||
|
Dimensions |
Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H) Item weight:0.2kg |
||
|
Environment |
Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:10%~90%(Non-condensing) |
||

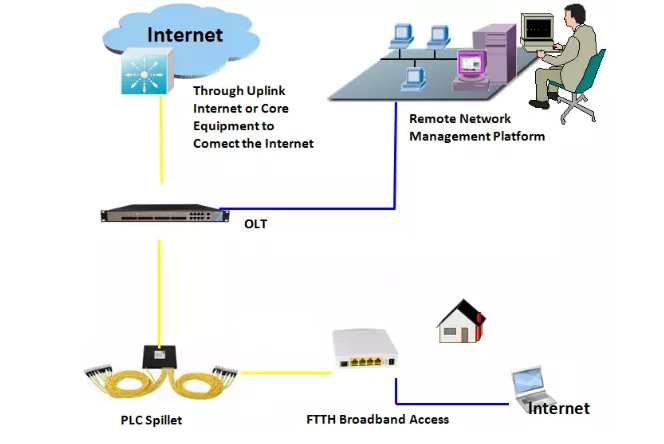

Solutions
.
Model
OEM 4 Lan WIFI GPON ONU
