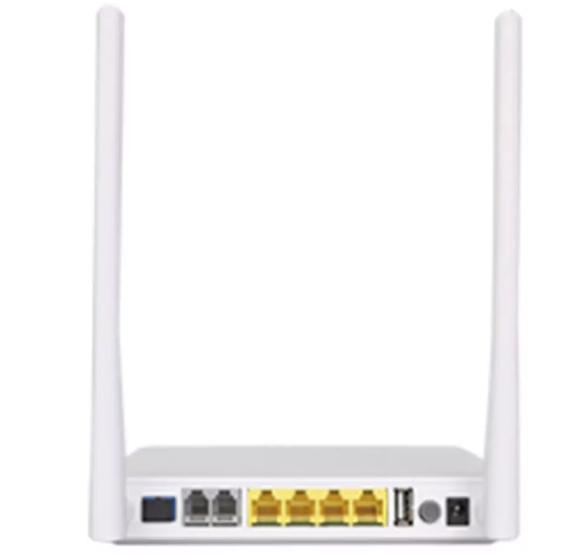

Oem GPON ONU WIFI with Pots
GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, voice and video service based on the GPON network.
It provide two POTS ports, one GE and three FE auto-adapting Ethernet ports one USB port and 802.11 n/b/g Wi-Fi access. The features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, Itprovides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Full compatible with ITU-T G.984
Support two POTS
Support one GE and three FE auto-adapting Ethernet ports
Support USB port
Support one 802.11 n/b/g Wi-Fi access
Support OMCI and TR069 for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control
Support loopback at UNI
Support packet filtering and illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support PPPOE+ for accurate subscribers identification
Support H.248 and SIP protocol
Support IGMP Snooping
Support AES-128
.
.
Specification
|
Item |
Parameters |
Specification |
|
Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 |
|
Ethernet Port (LAN) |
1*10/100/1000M and 3*10/100M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
POTS Port |
2*RJ11 with 3REN Max 1km distance Balanced Ring, 50V RMS |
|
|
USB interface |
1*USB 2.0 interface Transmission Rate: 480Mbps |
|
|
Power Supply Port |
12V DC input |
|
|
Management |
Network Management |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <7W |
|
|
Dimensions |
170mm(L)*130mm(W)*30mm(H) 0.3kg |
|
|
Environment |
Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:10%~90%(Non-condensing) |
WIFI
- IEEE 802.11n compliant, 2.4 GHz
- Full IEEE 802.11b/g legacy compatibility with enhanced performance
- Two-stream spatial multiplexing up to 300 Mbps PHY data rates
- Support multi-SSID(Maximum 4 SSID)
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
-
Item
Parameter
Performance parameters
Operating Mode
Router or bridge
Antenna gain
5dBi
WIFI antenna
1 external antennas, 1 built in antennas
Throughput
IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 300Mbps
Frequency
2.412 ~ 2.472 GHz
Channel
13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Modulation
DSSS , CCK and OFDM
Coding
BPSK, QPSK, 16QAM and 64QAM
RF receive sensitivity
802.11b:
-83dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-85dBm @ 6 Mbps; -84dBm @ 9 Mbps;
-82dBm @ 12 Mbps; -80dBm @ 18 Mbps;
-77dBm @ 24 Mbps; -73dBm @ 36 Mbps;
-69dBm @ 48 Mbps; -68dBm @ 54 Mbps
802.11n 20MHz:
-74dBm @ 65 Mbps;
-70dBm @ 130 Mbps;
802.11n 40MHz:
-70dBm @ 135 Mbps;
-67dBm @ 300 Mbps;
RF output lever
802.11b:
17 ±0.5dBm @11Mbps
802.11g:
15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps;
17 ± 1dBm @ 6 ~ 36 Mbps
802.11n 20MHz:
14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps;
18 ± 0.5dBm @ 6.5 Mbps
802.11n 40MHz:
14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps;
18 ± 0.5dBm @ 13.5 Mbps
Encryption Mode
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

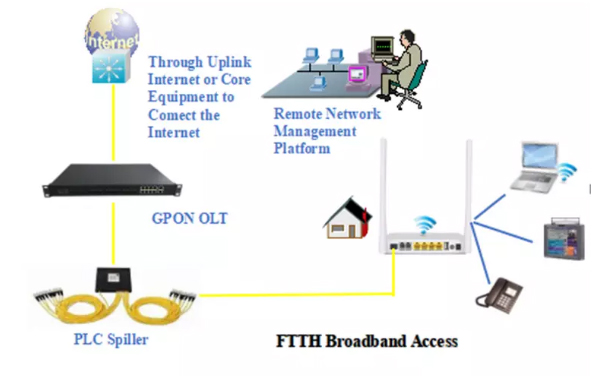

Solutions
.
