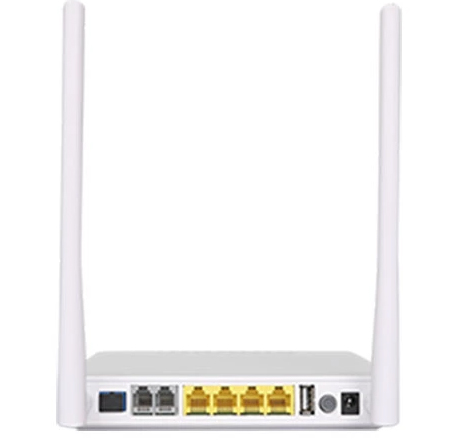

  Oem 2 pots 4 Lan EPON ONU with Wi-Fi

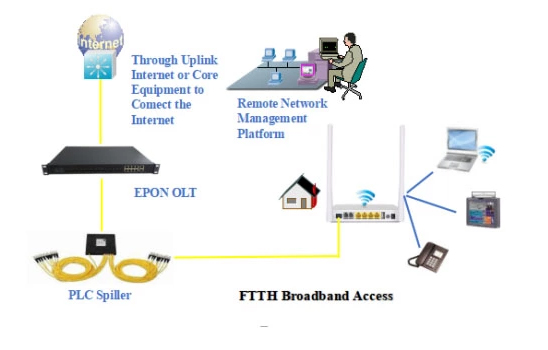

provide two POTS ports, four GE auto-adapting Ethernet ports, one USB ports, and 802.11a/b/g/n/ac Wi-Fi access. features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.

 Full compatible with IEEE802.3ah
Support two POTS
Support four GE auto-adapting Ethernet ports
Support 802.11a/b/g/n/ac Wi-Fi access, while support 2.4GHz and 5GHz
Support one USB interface
Support OAM and TR069 for remote management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control configuration
Support loopback at UNI
Support packet filtering and illegal message attack protection
Support performance statistics of Ethernet link
Support VLAN tagged label processing, traffic classification and packet filtering etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support H.248andSIP protocol
Support IGMP Snooping
Support Dynamic Bandwidth Allocation (DBA)

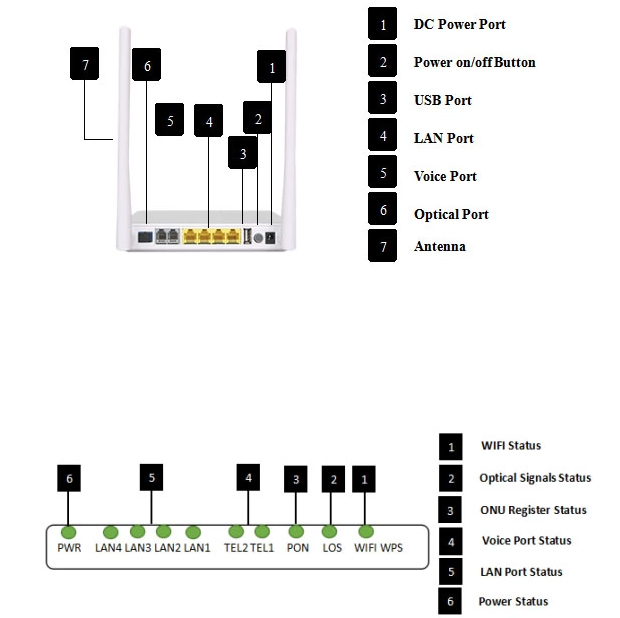

Uplink Interface

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM


2*RJ11 with 3REN

Max 1km distance

Balanced Ring, 50V RMS

Ethernet Interface

Full/half duplex mode
RJ45 connector
100m distance

USB interface

1*USB 2.0 interface

Transmission Rate: 480Mbps

Power Interface

12V DC Power supply

Network Management

Management Mode

Standard compliant OAM interface as defined by IEEE802.3ah

Support TR-069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management, Log management

Physical Features


Plastic casing


External 12VDC/1A power supply adapter

Power consumption: <7W

Dimension and Weight

Item Dimension:170mm(L) x 130mm(W) x 30mm (H)

Item weight:0.3kg


Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

 WIFI Features

  •  Comply with IEEE 802.11a/b/g/n/ac protocol standard, support 2.4GHz and 5GHz

  •  Fully compatible withIEEE 802.11n and improved in performance

  •  Physical layer protocol data rates up to 1Gbps

  •  Along with 802.11nMIMO (Multiple-Input Multiple-Output) technology, support up to 8 MIMO

  •  Support wider RF bandwidth, up to 160MHz

  •  Support higher 256-QAM modulation mode

  •  Support MIMO-OFDM encoding mode

  •  Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
