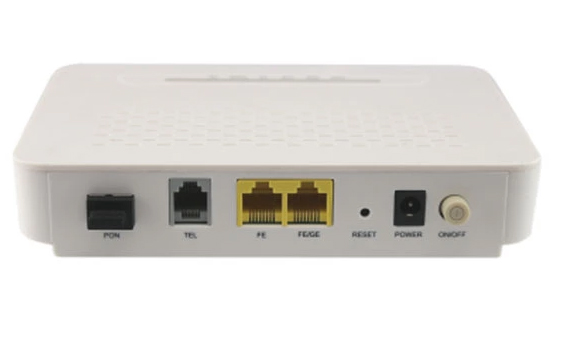

Oem 2 LAN + 1 POTS EPON ONU
It is one of the EPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, voice and video service based on the EPON network.
provide one POTS port, one FE and one FE/GE auto-adapting Ethernet ports. The ORTH60-212X features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Full compatible with IEEE802.3ah
Support one POTS port
Support one FE and one FE/GE auto-adapting Ethernet ports
Support OAM and TR069 for remote management
Support three router function
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control
Support loopback at UNI
Support packet filtering and anti-illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support PPPoE+ for accurate subscribers identification
Support H.248,MGC PandSIP protocol
Support IGMP Snooping
Support AES-128.
.
Specification
|
Item |
Parameters |
Specification |
|
Interface |
PON Port |
1 EPON optical interface |
|
Ethernet Port (LAN) |
1*10/100M and 1*10/100/1000M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
POTS Port |
1*RJ11 with 3REN Max 1km distance Balanced Ring, 50V RMS |
|
|
Power Supply Port |
12V DC input |
|
|
Management |
Network Management |
Standard compliant OAM interface as defined by IEEE802.3ah Support TR-069 and WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|

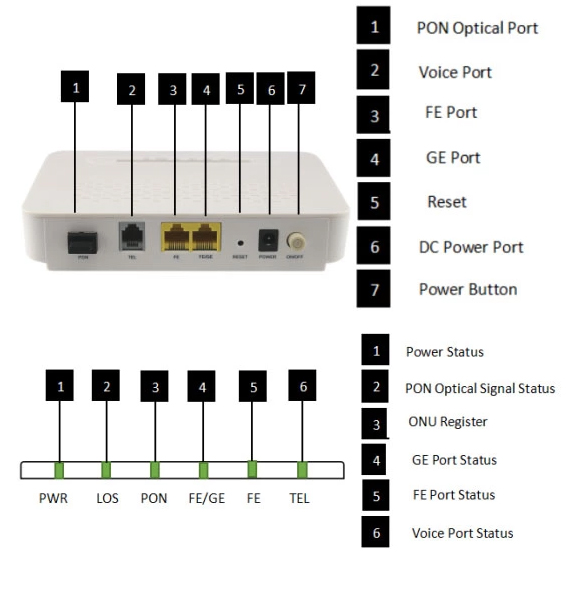

LED Indicator |
LEDS |
PWR: Power LOS: Optical link PON: ONU Register FE: Link Status of Ethernet Interface FE/GE: Link Status of Ethernet Interface TEL: Voice ports |
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 1A DC power supply adapter Power consumption: <6W |
|
|
Dimensions |
160mm(L) x 120mm(W) x33mm (H) 0.2kg |
|
|
Environment |
Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:10%~90%(Non-condensing) |

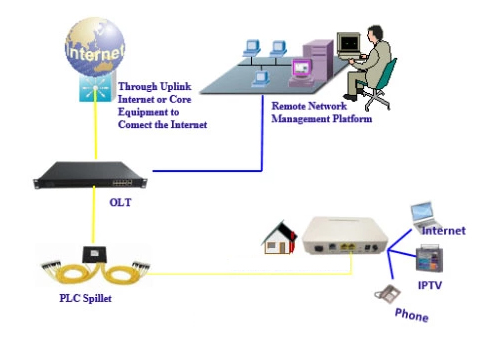

Solutions
.
Model
Oem 2 LAN + 1 POTS EPON ONU
