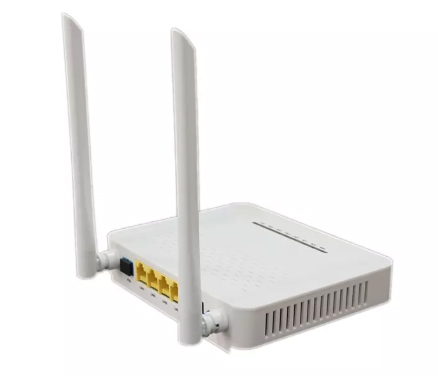

  oem 4 Ethernet EPON ONU with WIFI

fully meet IEE802.3ah and CTC3.0 standard protocol. It has good third-party compatibility to work with the third party OLT. It supports 1Gbps transmission rate up and down and provides users with good QOS, flexible bandwidth allocation of Ethernet services and IP integrated service.

It can integration wireless function with meet 802.11 n/b/g technical standards. It has built-in high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

 In compliant with ITU-T G. 984 Standard
Wi-Fi series meet 802.11 n/b/g technical standards
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software
Support port mode of VLAN configuration
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
EMS network management based on SNMP, convenient for maintenance
.








Specification




Item

Parameter

PON Interface

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC/UPC single-mode fiber
split ratio: 1:64
Transmission distance 20KM

User Ethernet
Interface

4*10/100M or 4*10/100/1000M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

An external 12V DC 0.5A power supply adapter

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0
~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm

Data Transmission
Parameter

PON Throughput: Downstream 980Mbps; Upstream 950Mbps
Ethernet: 100Mbps or 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business
Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLAN translation

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support loop detection

Network
Management

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support Remote management through SNMP and Telnet

Local management

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

Shell

Plastic casing

Power

4FE+WIFI:           <6.5W, 12V/0.6A power supply adapter

4GE+WIFI:          <7.5W, 12V/1A power supply adapter

Physical
Specifications

Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H)

Item weight:0.2kg

Environmental
Specifications

Operating temperature: 0 to 50
Storage temperature: -40 to 85

Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)



WIFI

Item

Parameter







Performance parameters

Operating Mode

Router or bridge

Antenna gain

5dBi

Throughput

IEEE 802.11b: 11Mbps

IEEE 802.11g: 54 Mbps

IEEE 802.11n: 300Mbps

Frequency

2.412 ~ 2.472 GHz

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

Modulation

DSSS , CCK and OFDM

Coding

BPSK, QPSK, 16QAM and 64QAM

RF receive sensitivity

802.11b:

-83dBm @ 1 Mbps; -80dBm @ 2 Mbps;

-79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps

802.11g:

-85dBm @ 6 Mbps; -84dBm @ 9 Mbps;

-82dBm @ 12 Mbps; -80dBm @ 18 Mbps;

-77dBm @ 24 Mbps; -73dBm @ 36 Mbps;

-69dBm @ 48 Mbps; -68dBm @ 54 Mbps

802.11n 20MHz:

-74dBm @ 65 Mbps;

-70dBm @ 130 Mbps;

802.11n 40MHz:

-70dBm @ 135 Mbps;

-67dBm @ 300 Mbps;

RF output lever

802.11b:

17 ±0.5dBm  @11Mbps

802.11g:

15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps;

17 ± 1dBm @ 6 ~ 36 Mbps

802.11n  20MHz:

14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps;

18 ± 0.5dBm @ 6.5 Mbps

802.11n  40MHz:

14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps;

18 ± 0.5dBm @ 13.5 Mbps

Encryption Mode

802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

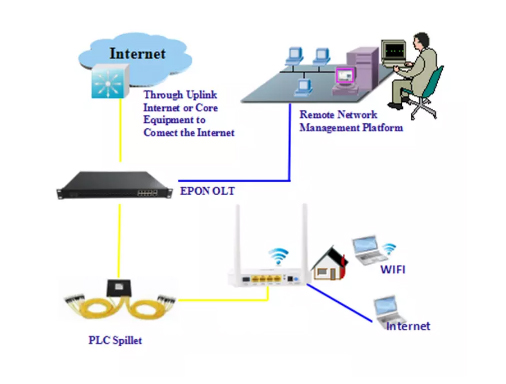

Solutions





.

Model

  oem 4 Ethernet EPON ONU with WIFI



oem 4 Ethernet EPON ONU with WIFI
