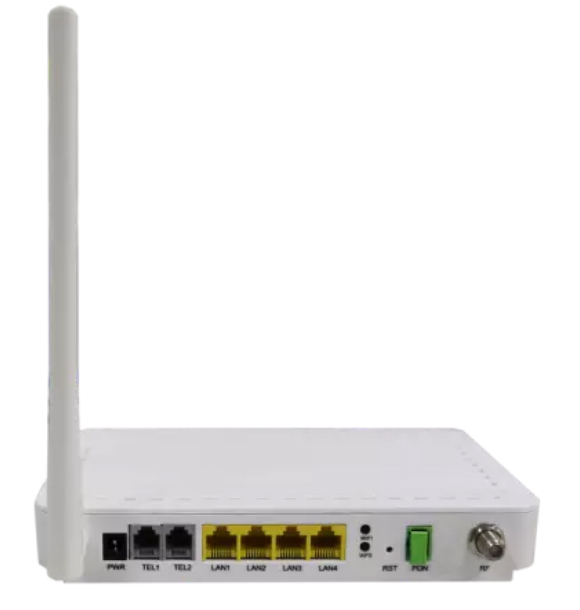

Single Fiber 4GE 2POTS CATV Wifi EPON ONU
It is a FTTH bandwidth access equipment. Based on mature and stable EPON technology, it has powerful functions with high stability, sound QoS guarantee, comprehensive management and flexible networking construction, etc. this series is technology standard fully complies with ITU-T, IEEE and telecommunication technology standard.
It adopts single fiber WDM technology with downlink wavelength 1490nm and 1550nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data service.

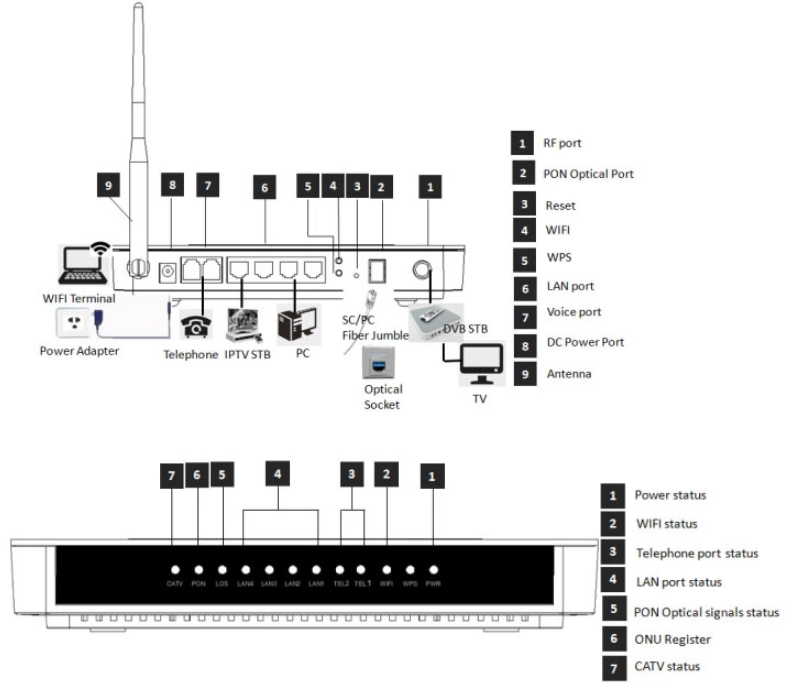

It has 1 PON port,2 POTS port, four10/100/1000 BASE-T ports and one CATV RF output. Support Wi-Fi function.
In compliant with IEEE802.3ah Standard and CTC3.0
Up to 20KM transmission Distance
Support VLAN and IGMP
Support port isolation between different ports
Integrated OAM remote configuration and maintenance function
Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
EMS network management based on SNMP, convenient for maintenance
Full speed non-blocking switching
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
Integrated port monitoring, port mirroring, port rate limiting, etc.
Support auto polarity detection of Ethernet ports (AUTO MDIX)
Integrated IEEE802.1p QoS with four level priority queues
Support IPv4 IGMP snooping and IPv6 MLD snooping.
.
.
Specification
|
Item |
Parameter |
|
|
Interface |
Uplink Interface |
PON Interface:
1 EPON optical interface |
|
POTS Port |
2*RJ11 with 3REN Max 1km distance Balanced Ring, 50V RMS |
|
|
CATV Interface |
1 RF output Female F-Type Connector |
|
|
Ethernet Interface |
4*10/100/1000Mauto-negotiation |
|
|
Power Interface |
12V DC Power supply |
|
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm,
Rx1490nm |
|
Data Transmission |
PON Throughput: Downstream
980Mbps; Upstream 950Mbps |
|
|
Business Capability |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN translation Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection |
|
|
Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
CATV
|
Item |
Parameter |
|
Wavelength |
1550nm |
|
Optical return loss |
>45dB |
|
Input optical power |
-18dBm~0dBm |
|
RF frequency |
47MHz~1000MHz |
|
RF output lever |
78dBuV (@-12~-2dBm@85MHz) |
|
CNR |
>41dB (@-10dBm@DS22 Channel) |
|
CSO |
>60dBc (@-10dBm@DS22 Channel) |
