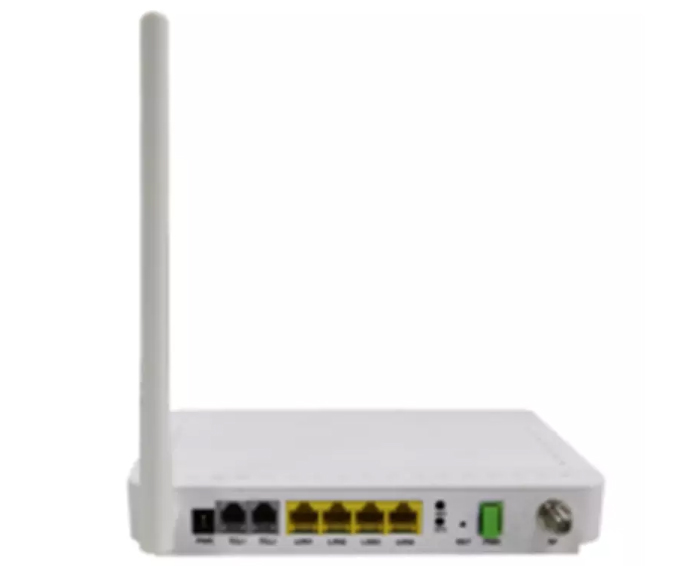

Single Fiber 4GE+2POTS+CATV+Wifi GPON ONU
It (4GE+2POTS+RF+Wi-Fi) series is a FTTH bandwidth access equipment. Based on mature and stable GPON technology, it has powerful functions with high stability, QoS guarantee, comprehensive management and flexible networking construction, etc. It is fully compatible with ITU-T G.984 technology standard.
It adopts single fiber WDM technology with downlink wavelength 1490nm and 1550nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

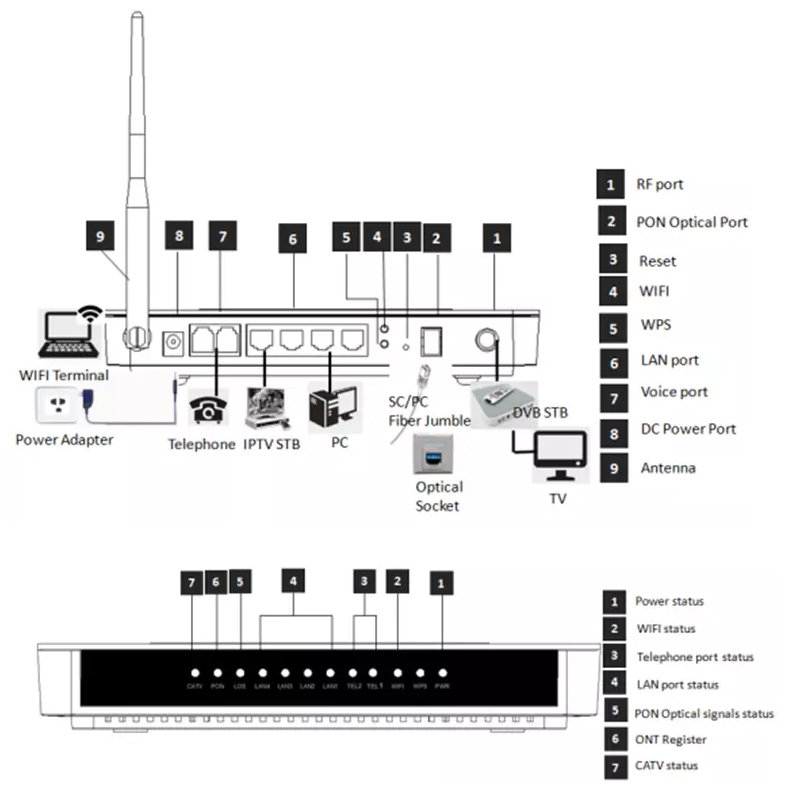

It has 1 PON port, 2 POTS port, four 10/100/1000BASE-T ports and one CATV RF output, support Wi-Fi function .
Full compatible with ITU-T G.984
Support two POTS
Support four GE auto-adapting Ethernet ports
Support one CATV output
Support one 802.11 n/b/g WiFi port
Support OMCI and TR069 for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control
Support loopback at UNI
Support packet filtering and anti-illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support DHCP Option60 reporting the location information of the Ethernet interface
Support PPPoE+ for accurate subscribers identification
Support H.248,MGCP and SIP protocol
Support IGMP Snooping
Support AES-128
CATV support turn on/off RF output remotely
.
Specification
|
Item |
Parameter |
|
|
Interface |
Uplink Interface |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 |
|
CATV Interface |
1 RF output Female F-Type Connector |
|
|
POTS Port |
2*RJ11 with 3REN Max 1km distance Balanced Ring, 50V RMS |
|
|
Ethernet Interface |
4*10/100/1000Mauto-negotiation |
|
|
Power Interface |
12V DC Power supply |
|
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
|
Data Transmission |
PON Throughput: Downstream
2.488Gbit/s s; Upstream
1.244Gbit/s |
|
|
Business Capability |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN translation Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection |
|
|
Physical Features |
Shell |
Plastic casing |
|
Power |
External 12VDC/1A power supply adapter Power consumption: <9W |
|
|
Dimension and Weight |
Item Dimension:200mm(L) x 140mm(W) x 33mm (H) Item weight:0.5kg |
|
|
Environmental |
Operating temperature: 0 to 50ºC |
|
CATV
|
Item |
Parameter |
|
Wavelength |
1550nm |
|
Optical return loss |
>45dB |
|
Input optical power |
-18dBm~0dBm |
|
RF frequency |
47MHz~1000MHz |
|
RF output lever |
78dBuV (@-12~-2dBm@85MHz) |
|
CNR |
>41dB (@-10dBm@DS22 Channel) |
|
CSO |
>60dBc (@-10dBm@DS22 Channel) |

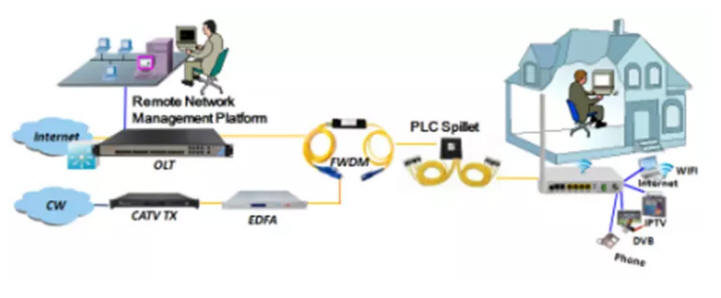

Solutions
.
Model
Single Fiber 4GE+2POTS+CATV+Wifi GPON ONU
